EMISSION SYSTEM LOCATION INDEX [SKYACTIV-G 2.5T]

id0116q4803700


Engine Compartment Side

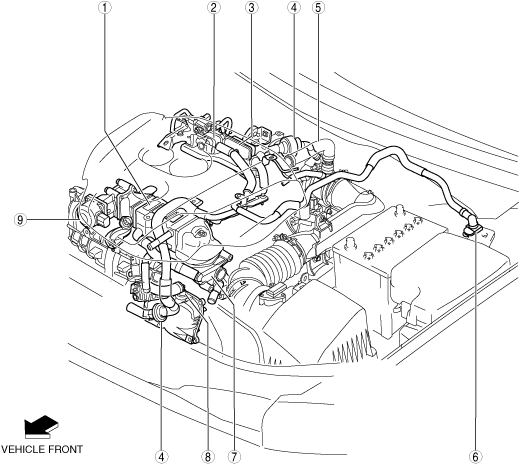

ac9uuw00009297

1
EGR cooler
(See EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See EGR COOLER INSPECTION [SKYACTIV-G 2.5T].)
2
Purge solenoid valve
(See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See PURGE SOLENOID VALVE INSPECTION [SKYACTIV-G 2.5T].)
3
Catch tank
(See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CATCH TANK INSPECTION [SKYACTIV-G 2.5T].)
4
Check valve
(See CHECK VALVE (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CHECK VALVE (EMISSION SYSTEM) INSPECTION [SKYACTIV-G 2.5T].)
5
Ventilation hose
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
6
Quick release connector
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
7
EGR pipe
(See EGR PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
8
PCV valve
(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [SKYACTIV-G 2.5T].)
9
EGR valve
(See EGR VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See EGR VALVE INSPECTION [SKYACTIV-G 2.5T].)

Exhaust System Side

2WD

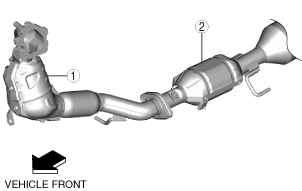

ac9uuw00009298

1
WU-TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
2
TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

4WD

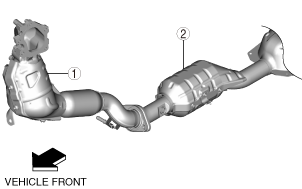

ac9uuw00009299

1
WU-TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
2
TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

Fuel Tank Side

2WD (Taiwan)

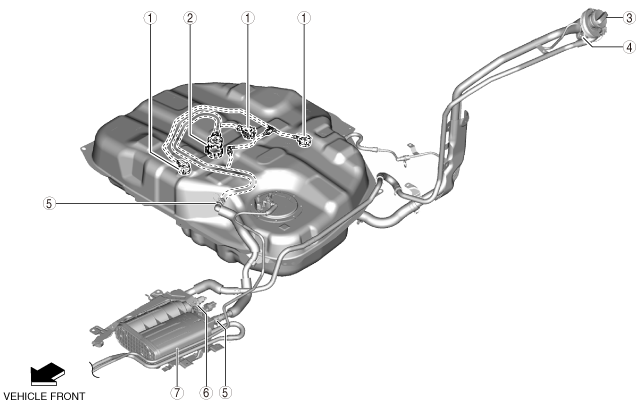

ac9wzw00005724

1
Rollover valve
(See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See ROLLOVER VALVE INSPECTION [SKYACTIV-G 2.5T].)
2
Fuel shut-off valve
(See FUEL SHUT-OFF VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See FUEL SHUT-OFF VALVE INSPECTION [SKYACTIV-G 2.5T].)
3
Fuel-filler cap
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
4
Plug
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
5
Quick release connector
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
6
CV solenoid valve
(See CANISTER VENT (CV) SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CANISTER VENT (CV) SOLENOID VALVE INSPECTION [SKYACTIV-G 2.5T].)
7
Charcoal canister
(See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.5T].)

2WD (Except Taiwan)

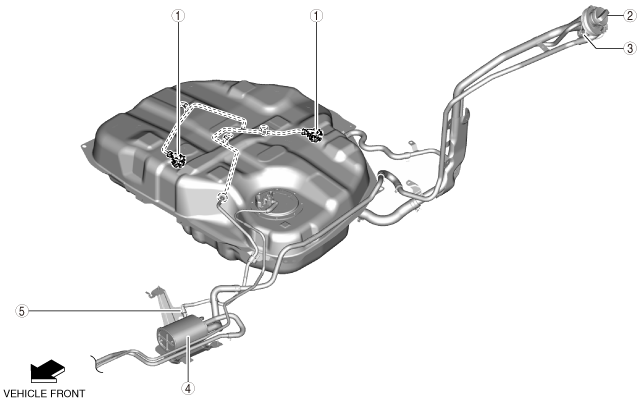

ac9uuw00009302

1
Rollover valve
(See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See ROLLOVER VALVE INSPECTION [SKYACTIV-G 2.5T].)
2
Fuel-filler cap
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
3
Plug
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
4
Charcoal canister
(See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.5T].)
5
Check valve
(See CHECK VALVE (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CHECK VALVE (EMISSION SYSTEM) INSPECTION [SKYACTIV-G 2.5T].)

4WD (Taiwan)

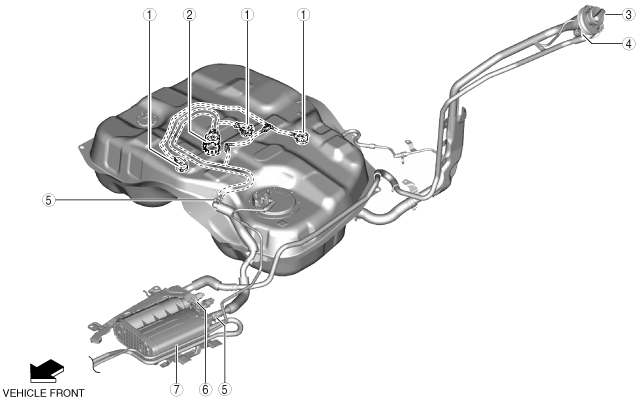

ac9wzw00005725

1
Rollover valve
(See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See ROLLOVER VALVE INSPECTION [SKYACTIV-G 2.5T].)
2
Fuel shut-off valve
(See FUEL SHUT-OFF VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See FUEL SHUT-OFF VALVE INSPECTION [SKYACTIV-G 2.5T].)
3
Fuel-filler cap
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
4
Plug
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
5
Quick release connector
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
6
CV solenoid valve
(See CANISTER VENT (CV) SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CANISTER VENT (CV) SOLENOID VALVE INSPECTION [SKYACTIV-G 2.5T].)
7
Charcoal canister
(See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.5T].)

4WD (Except Taiwan)

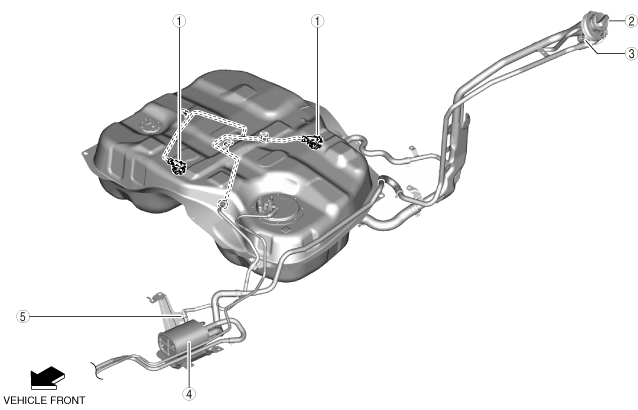

ac9uuw00009303

1
Rollover valve
(See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See ROLLOVER VALVE INSPECTION [SKYACTIV-G 2.5T].)
2
Fuel-filler cap
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
3
Plug
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
4
Charcoal canister
(See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.5T].)
5
Check valve
(See CHECK VALVE (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CHECK VALVE (EMISSION SYSTEM) INSPECTION [SKYACTIV-G 2.5T].)
