HVAC BASIC SYSTEM LOCATION INDEX
id071100801700
L.H.D.

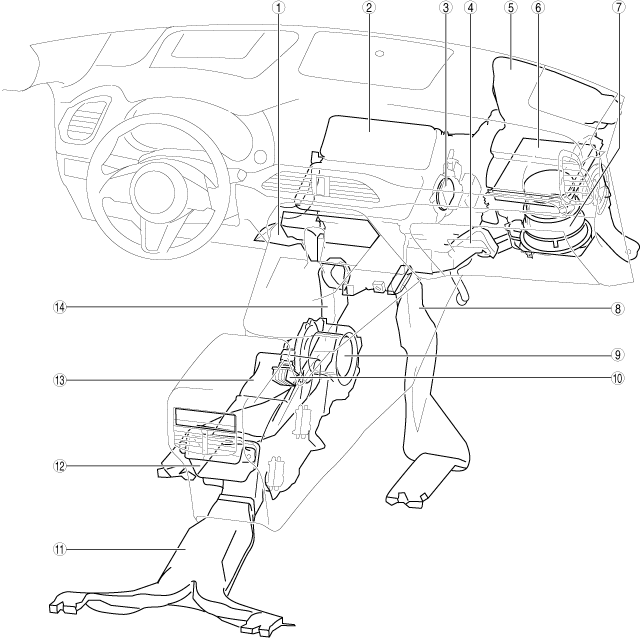

Structural view
ac9wzw00003585
|
|
1
|
Driver-side front heat duct
|
|
2
|
Front A/C unit
|
|
3
|
Airflow mode main link
|
|
4
|
Passenger-side front heat duct
|
|
5
|
Blower unit
|
|
6
|
Air filter
(See AIR FILTER INSPECTION.)
|
|
7
|
Front blower motor
|
|
8
|
Passenger-side rear heat duct No.1
|
|
9
|
Rear blower motor
(See REAR BLOWER MOTOR INSPECTION.)
|
|
10
|
Power MOS FET
|
|
11
|
Rear heat duct No.2
|
|
12
|
Rear cooler duct
|
|
13
|
Rear A/C unit
|
|
14
|
Driver-side rear heat duct No.1
|

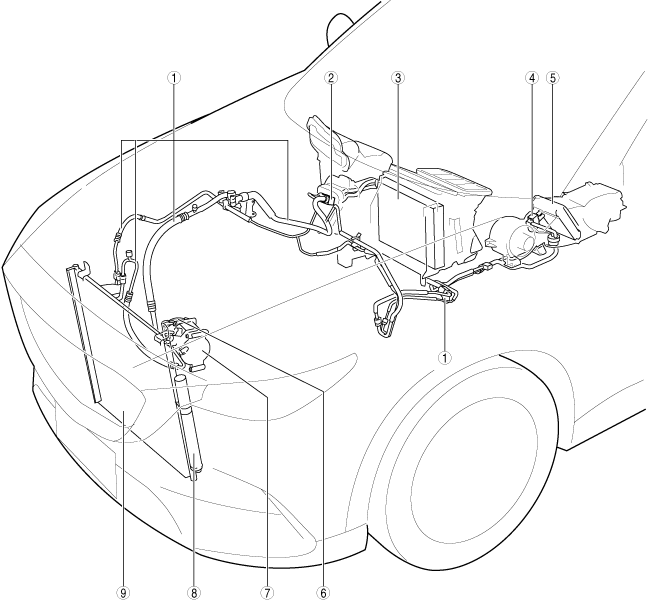

Structural view (refrigerant system)
ac9wzw00003586
|
|
1
|
Refrigerant line
|
|
2
|
Front expansion valve
|
|
3
|
Front evaporator
(See FRONT EVAPORATOR INSPECTION.)
|
|
4
|
Rear expansion valve
|
|
5
|
Rear evaporator
(See REAR EVAPORATOR INSPECTION.)
|
|
6
|
Magnetic clutch
(See MAGNETIC CLUTCH ADJUSTMENT.)
(See MAGNETIC CLUTCH INSPECTION.)
|
|
7
|
A/C compressor
|
|
8
|
Receiver/drier
|
|
9
|
Condenser
(See CONDENSER INSPECTION.)
|
Structural view (heater system)
ac9wzw00003587
|
|
1
|
Heater pipe and heater hose (front)
|
|
2
|
Front heater core
(See FRONT HEATER CORE INSPECTION.)
|
|
3
|
Heater pipe and heater hose (rear)
|
|
4
|
Rear heater core
(See REAR HEATER CORE INSPECTION.)
|
R.H.D.

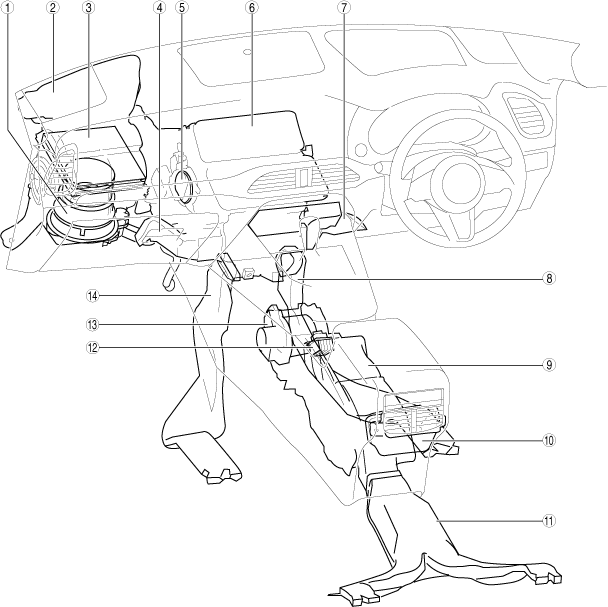

Structural view
ac9wzw00003588
|
|
1
|
Front blower motor
|
|
2
|
Blower unit
|
|
3
|
Air filter
(See AIR FILTER INSPECTION.)
|
|
4
|
Passenger-side front heat duct
|
|
5
|
Airflow mode main link
|
|
6
|
Front A/C unit
|
|
7
|
Driver-side front heat duct
|
|
8
|
Driver-side rear heat duct No.1
|
|
9
|
Rear A/C unit
|
|
10
|
Rear cooler duct
|
|
11
|
Rear heat duct No.2
|
|
12
|
Power MOS FET
|
|
13
|
Rear blower motor
(See REAR BLOWER MOTOR INSPECTION.)
|
|
14
|
Passenger-side rear heat duct No.1
|
Structural view (refrigerant system)

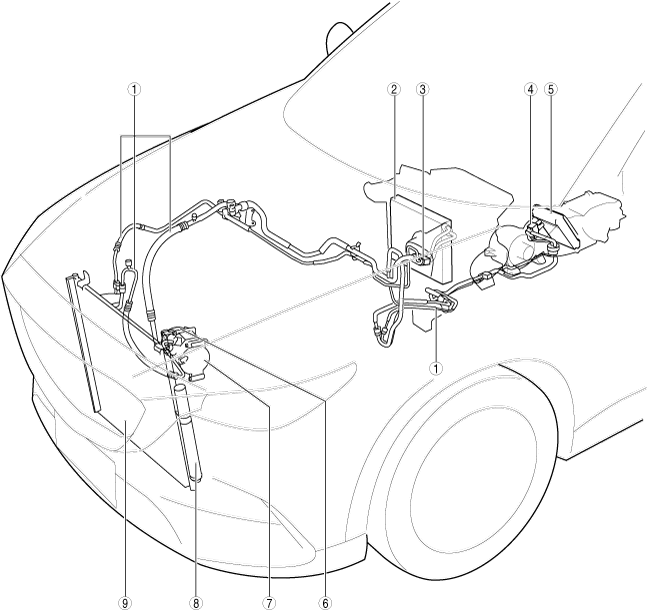

ac9wzw00003589
|
|
1
|
Refrigerant line
|
|
2
|
Front evaporator
(See FRONT EVAPORATOR INSPECTION.)
|
|
3
|
Front expansion valve
|
|
4
|
Rear expansion valve
|
|
5
|
Rear evaporator
(See REAR EVAPORATOR INSPECTION.)
|
|
6
|
Magnetic clutch
(See MAGNETIC CLUTCH ADJUSTMENT.)
(See MAGNETIC CLUTCH INSPECTION.)
|
|
7
|
A/C compressor
|
|
8
|
Receiver/drier
|
|
9
|
Condenser
(See CONDENSER INSPECTION.)
|

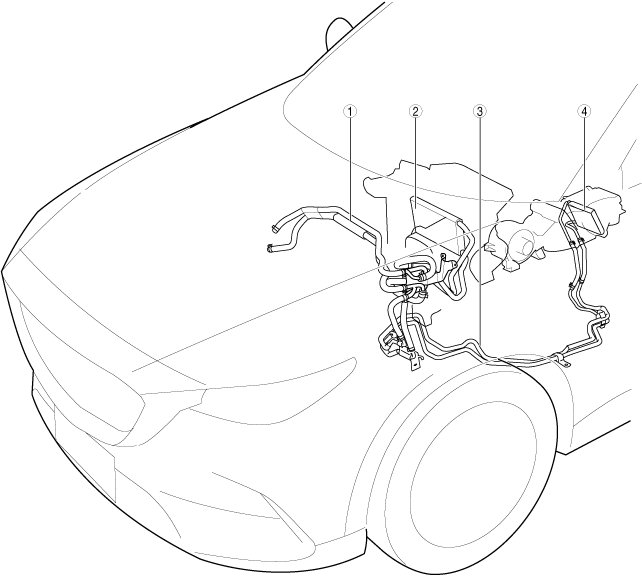

Structural view (heater system)

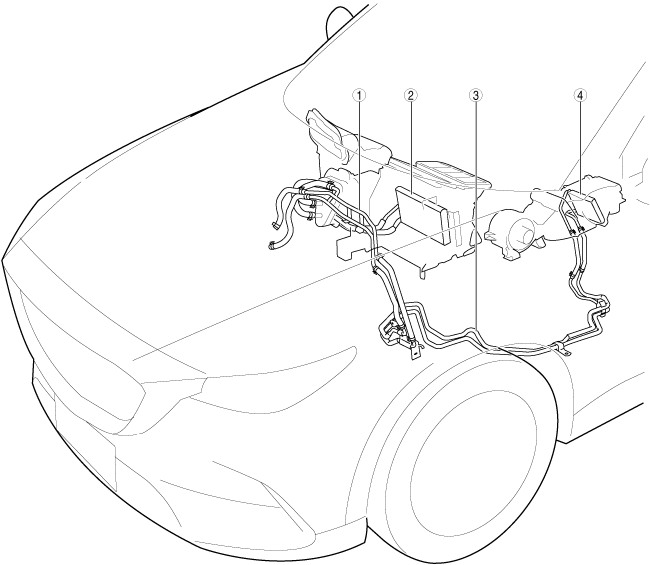

ac9wzw00003590
|
|
1
|
Heater pipe and heater hose (front)
|
|
2
|
Front heater core
(See FRONT HEATER CORE INSPECTION.)
|
|
3
|
Heater pipe and heater hose (rear)
|
|
4
|
Rear heater core
(See REAR HEATER CORE INSPECTION.)
|
