CONTROL SYSTEM LOCATION INDEX [SKYACTIV-G 2.5T]

id0140h0804100

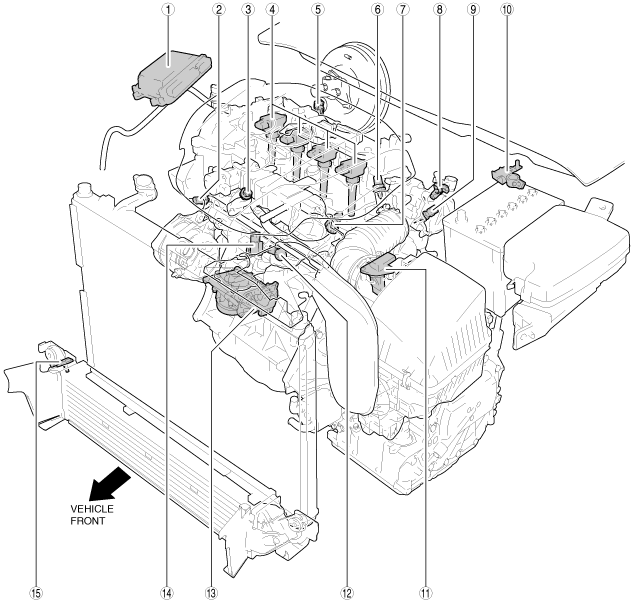

ac9wzw00003393

1
PCM (BARO sensor, PCM temperature sensor)
(See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See PCM INSPECTION [SKYACTIV-G 2.5T].)
(See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 2.5T].)
(See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 2.5T].)
(See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
2
High fuel pressure sensor
(See HIGH FUEL PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See HIGH FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)
3
Exhaust gas pressure sensor
(See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See EXHAUST GAS PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)
4
Ion sensor
(See ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See ION SENSOR INSPECTION [SKYACTIV-G 2.5T].)
5
Power brake unit vacuum sensor (with i-stop system)
(See POWER BRAKE UNIT VACUUM SENSOR INSPECTION [SKYACTIV-G 2.5T].)
6
Low fuel pressure sensor/Fuel temperature sensor
(See LOW FUEL PRESSURE SENSOR/FUEL TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See LOW FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)
(See FUEL TEMPERATURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)
7
Intake CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
8
Exhaust CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
9
ECT sensor
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
10
Current sensor (with i-stop system)
(See CURRENT SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CURRENT SENSOR INSPECTION [SKYACTIV-G 2.5T].)
11
MAF sensor/IAT sensor No.1
(See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See MASS AIR FLOW (MAF) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
12
KS
(See KNOCK SENSOR (KS) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See KNOCK SENSOR (KS) INSPECTION [SKYACTIV-G 2.5T].)
13
TP sensor
(See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See THROTTLE POSITION (TP) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
14
MAP sensor/IAT sensor No.2
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
15
Boost pressure sensor/Boost air temperature sensor
(See BOOST PRESSURE SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See BOOST PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)
(See BOOST AIR TEMPERATURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)

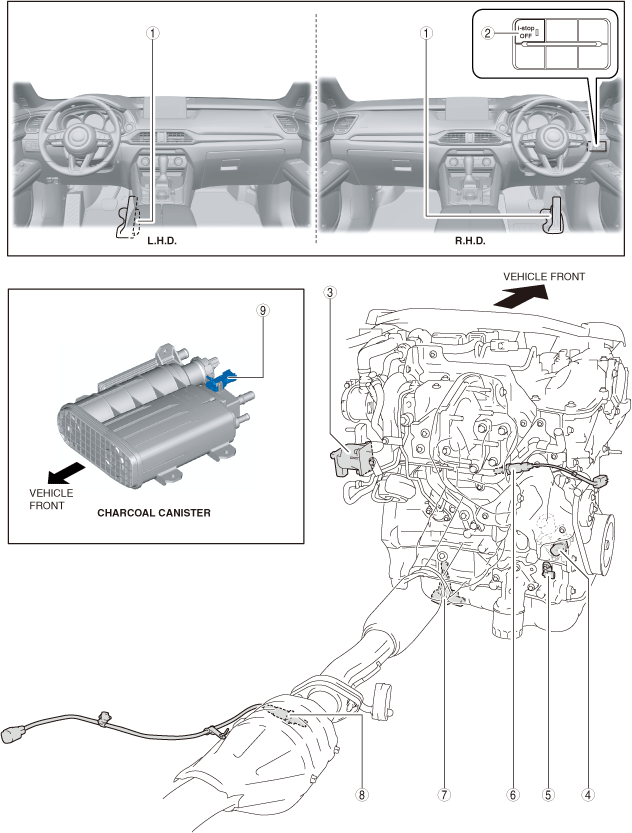

ac9wzw00005000

1
APP sensor
(See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
2
i-stop OFF switch (with i-stop system)
(See i-stop OFF SWITCH REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See i-stop OFF SWITCH INSPECTION [SKYACTIV-G 2.5T].)
3
Wastegate valve position sensor
(See WASTEGATE VALVE POSITION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See WASTEGATE VALVE POSITION SENSOR INSPECTION [SKYACTIV-G 2.5T].)
4
Engine oil pressure sensor/Engine oil temperature sensor
(See ENGINE OIL PRESSURE SENSOR/ENGINE OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See ENGINE OIL PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)
(See ENGINE OIL TEMPERATURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)
5
CKP sensor
(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
6
A/F sensor
(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-G 2.5T].)
7
Engine oil level sensor
(See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See ENGINE OIL LEVEL SENSOR INSPECTION [SKYACTIV-G 2.5T].)
8
HO2S
(See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See HEATED OXYGEN SENSOR (HO2S) INSPECTION [SKYACTIV-G 2.5T].)
9
Fuel tank pressure sensor (with fuel tank pressure sensor)
(See FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(See FUEL TANK PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.5T].)
