HVAC CONTROL SYSTEM LOCATION INDEX

id074000803600


L.H.D.

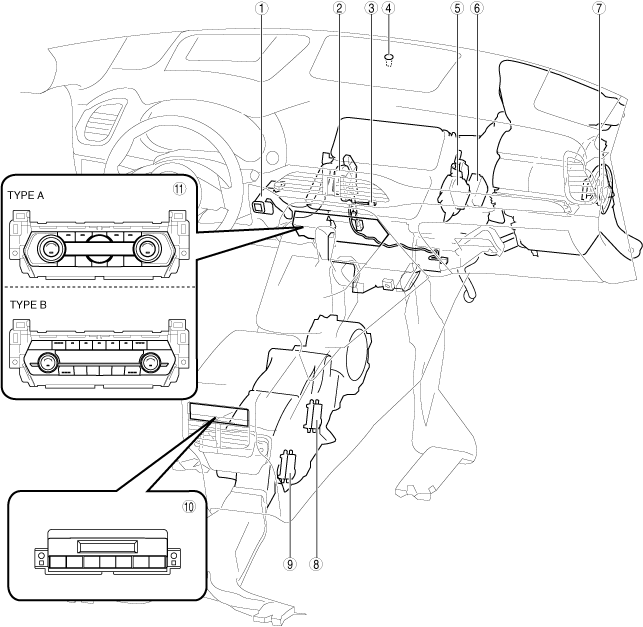

Structural view

ac9wzw00003702

1
Cabin temperature sensor
(See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.)
(See CABIN TEMPERATURE SENSOR INSPECTION.)
2
Driver-side front air mix actuator
(See FRONT AIR MIX ACTUATOR REMOVAL/INSTALLATION.)
(See FRONT AIR MIX ACTUATOR INSPECTION.)
3
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION.)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION.)
4
Solar radiation sensor
(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION.)
(See SOLAR RADIATION SENSOR INSPECTION.)
5
Front airflow mode actuator
(See FRONT AIRFLOW MODE ACTUATOR REMOVAL.)
(See FRONT AIRFLOW MODE ACTUATOR INSTALLATION.)
(See FRONT AIRFLOW MODE ACTUATOR INSPECTION.)
6
Passenger-side front air mix actuator
(See FRONT AIR MIX ACTUATOR REMOVAL/INSTALLATION.)
(See FRONT AIR MIX ACTUATOR INSPECTION.)
7
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL.)
(See AIR INTAKE ACTUATOR INSTALLATION.)
(See AIR INTAKE ACTUATOR INSPECTION.)
8
Rear air mix actuator
(See REAR AIR MIX ACTUATOR REMOVAL/INSTALLATION.)
(See REAR AIR MIX ACTUATOR INSPECTION.)
9
Rear airflow mode actuator
(See REAR AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.)
(See REAR AIRFLOW MODE ACTUATOR INSPECTION.)
10
Rear climate control unit
(See REAR CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.)
(See REAR CLIMATE CONTROL UNIT INSPECTION.)
11
Front climate control unit
(See FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.)
(See FRONT CLIMATE CONTROL UNIT INSPECTION.)

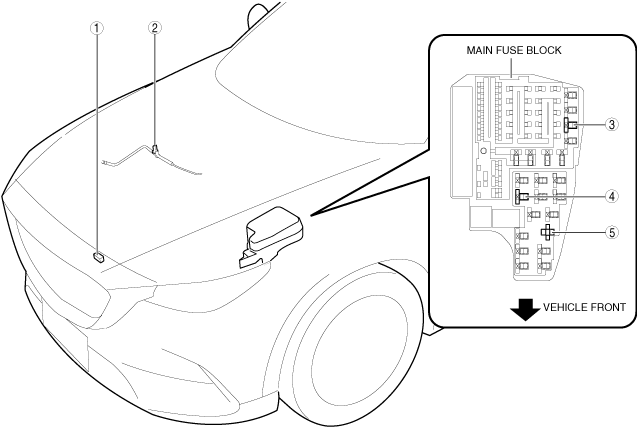

Structural view

ac9wzw00003703

1
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.)
(See AMBIENT TEMPERATURE SENSOR INSPECTION.)
2
Refrigerant pressure sensor
(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION.)
(See REFRIGERANT PRESSURE SENSOR INSPECTION.)
3
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
4
Rear blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
5
Front blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)


R.H.D.

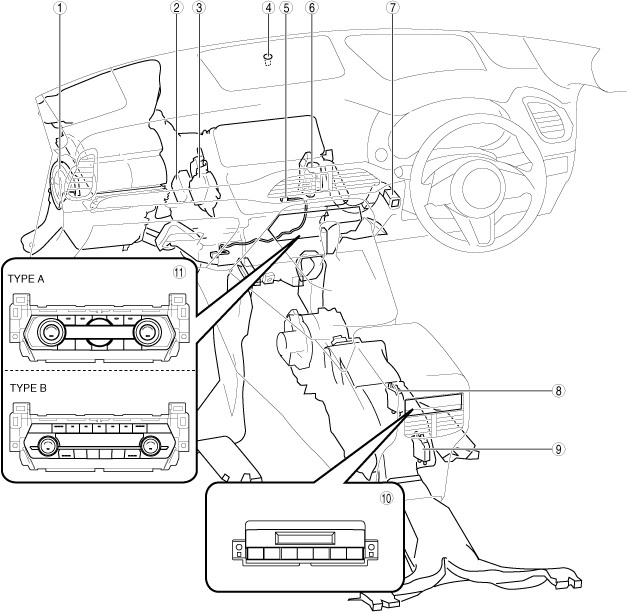

Structural view

ac9wzw00003704

1
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL.)
(See AIR INTAKE ACTUATOR INSTALLATION.)
(See AIR INTAKE ACTUATOR INSPECTION.)
2
Passenger-side front air mix actuator
(See FRONT AIR MIX ACTUATOR REMOVAL/INSTALLATION.)
(See FRONT AIR MIX ACTUATOR INSPECTION.)
3
Front airflow mode actuator
(See FRONT AIRFLOW MODE ACTUATOR REMOVAL.)
(See FRONT AIRFLOW MODE ACTUATOR INSTALLATION.)
(See FRONT AIRFLOW MODE ACTUATOR INSPECTION.)
4
Solar radiation sensor
(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION.)
(See SOLAR RADIATION SENSOR INSPECTION.)
5
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION.)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION.)
6
Driver-side front air mix actuator
(See FRONT AIR MIX ACTUATOR REMOVAL/INSTALLATION.)
(See FRONT AIR MIX ACTUATOR INSPECTION.)
7
Cabin temperature sensor
(See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION.)
(See CABIN TEMPERATURE SENSOR INSPECTION.)
8
Rear air mix actuator
(See REAR AIR MIX ACTUATOR REMOVAL/INSTALLATION.)
(See REAR AIR MIX ACTUATOR INSPECTION.)
9
Rear airflow mode actuator
(See REAR AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.)
(See REAR AIRFLOW MODE ACTUATOR INSPECTION.)
10
Rear climate control unit
(See REAR CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.)
(See REAR CLIMATE CONTROL UNIT INSPECTION.)
11
Front climate control unit
(See FRONT CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.)
(See FRONT CLIMATE CONTROL UNIT INSPECTION.)


Structural view

ac9wzw00003703

1
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION.)
(See AMBIENT TEMPERATURE SENSOR INSPECTION.)
2
Refrigerant pressure sensor
(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION.)
(See REFRIGERANT PRESSURE SENSOR INSPECTION.)
3
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
4
Rear blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
5
Front blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
