LIGHTING SYSTEMS LOCATION INDEX
id091800800100

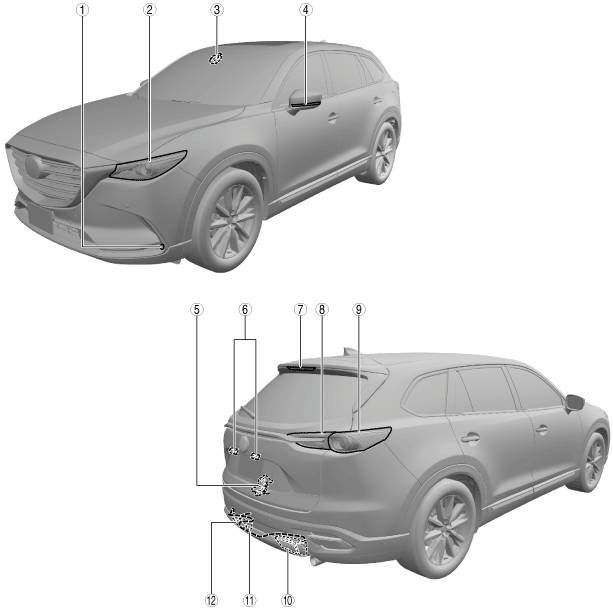

Exterior
ac9uuw00007126
|
|
1
|
Front fog light (with front fog lights)
(See FRONT FOG LIGHT INSPECTION.)
(See FRONT FOG LIGHT AIMING.)
|
|
2
|
Front combination light
(See HEADLIGHT AIMING.)
|
|
3
|
Auto light sensor (with auto light system)
|
|
4
|
Side turn light
(See SIDE TURN LIGHT INSPECTION.)
|
|
5
|
Auto leveling sensor (with auto leveling sensor)
|
|
6
|
License plate lights
|
|
7
|
High-mount brake light
|
|
8
|
Liftgate light
|
|
9
|
Rear combination light
|
|
10
|
Rear fog light (with rear fog light) (R.H.D.)
|
|
11
|
Rear fog light short-cord (with rear fog light)
|
|
12
|
Rear fog light (with rear fog light) (L.H.D.)
|

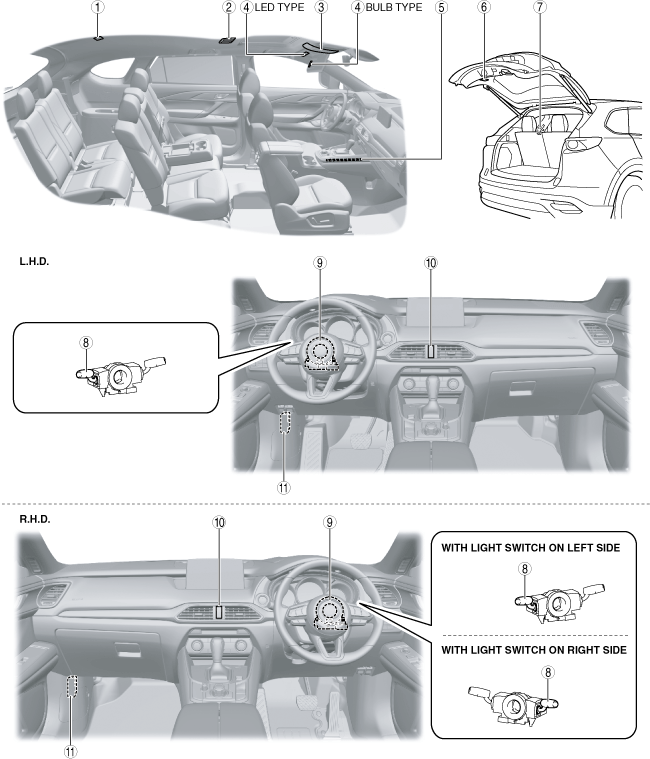

Interior
ac9uuw00007127
|
|
1
|
Rear map light
|
|
2
|
Center map light
(See CENTER MAP LIGHT INSPECTION.)
|
|
3
|
Front map light
(See FRONT MAP LIGHT INSPECTION.)
|
|
4
|
Vanity mirror illumination (with vanity mirror illumination)
|
|
5
|
Front console ambient light (with front console ambient light)
|
|
6
|
Cargo compartment light
|
|
7
|
Brake light unit (with smart brake support (SBS))
(See BRAKE LIGHT UNIT INSPECTION.)
|
|
8
|
Light switch
(See LIGHT SWITCH INSPECTION.)
|
|
9
|
Steering angle sensor (with smart city brake support (SCBS))
|
|
10
|
Hazard warning switch
|
|
11
|
Auto leveling control module (without adaptive LED headlights)
|
