VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION

id091800820100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

3.  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

4.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

5.  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

6.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

7.  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

8.  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

9.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

10.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

11.  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

12.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

13.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

14.  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

15.  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

16.  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

17.  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

18.  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

19.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

20.  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

21.  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

22.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

23.  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

24.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

25.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

26.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

27.  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

28.  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

29.  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

30.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

31.  Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

32.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

33.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am6xuw00011378

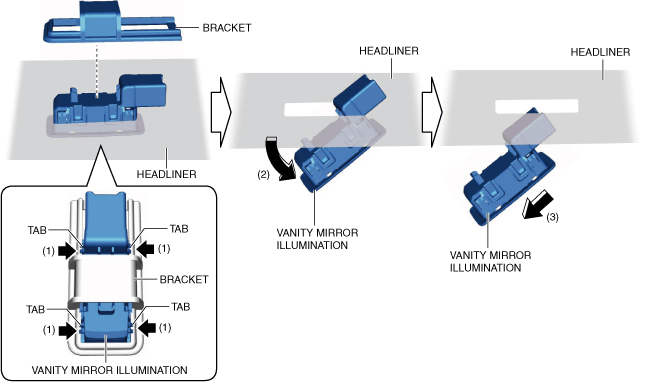

4.  Remove the bracket while pressing the vanity mirror illumination tabs (1).

Caution

•  If the vanity mirror illumination is removed from the bracket, the vanity mirror illumination may fall off and be damaged. When removing the vanity mirror illumination from the bracket, hold the vanity mirror illumination on the lens side with a hand during servicing.

am6xuw00011379

5.  Move the vanity mirror illumination in the direction of the arrow (2), (3) and remove the vanity mirror illumination from the headliner.

6.  Install in the reverse order of removal.
