CENTER ROOF ANTENNA INSPECTION

id092000801700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4)  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(5)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6)  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(7)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(8)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(9)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(10)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(11)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(12)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(13)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(14)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(15)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(16)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(17)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(18)  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(19)  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

(20)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(21)  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(22)  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(23)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(24)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(25)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(26)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(27)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(28)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(29)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(30)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(31)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(32)  Adjust anchor cover on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

(33)  Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

(34)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(35)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

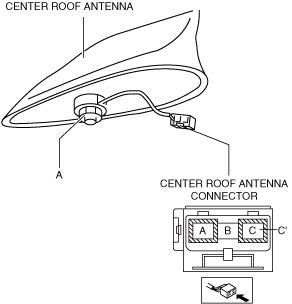

3.  Verify that the continuity between the center roof antenna terminals is as indicated in the table.

ac9wzw00004311

•  If the continuity is not as indicated in the table, verify the installation condition of the center roof antenna installation nut.

ac9wzw00004312

•  If the installation condition of the center roof antenna installation nut is normal, replace the center roof antenna. (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION.)
