INSTRUMENTATION/DRIVER INFO. LOCATION INDEX

id092200010200


Interior

ac9wzw00005259

1
Parking sensor switch (With parking sensor system)
(See PARKING SENSOR SWITCH REMOVAL/INSTALLATION.)
(See PARKING SENSOR SWITCH INSPECTION.)
2
Instrument cluster
(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
(See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.)
(See INSTRUMENT CLUSTER INSPECTION.)
(See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).)
(See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).)
(See INSTRUMENT CLUSTER OPERATION RECORD.)
(See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE.)
(See INSTRUMENT CLUSTER DATA RESET PROCEDURE.)
3
MAZDA ERA-GLONASS speaker (with MAZDA ERA-GLONASS)
(See MAZDA ERA-GLONASS SPEAKER REMOVAL/INSTALLATION.)
(See MAZDA ERA-GLONASS SPEAKER INSPECTION.)
4
Indicator unit
(See INDICATOR UNIT REMOVAL/INSTALLATION.)
(See INDICATOR UNIT INSPECTION.)
5
TEL antenna (with MAZDA ERA-GLONASS)
(See TEL ANTENNA REMOVAL/INSTALLATION.)
6
Parking assist unit (With parking sensor system)
(See PARKING ASSIST UNIT REMOVAL/INSTALLATION.)
(See PARKING ASSIST UNIT INSPECTION.)
7
MAZDA ERA-GLONASS control module (with MAZDA ERA-GLONASS)
(See MAZDA ERA-GLONASS CONTROL MODULE REMOVAL/INSTALLATION.)
(See MAZDA ERA-GLONASS CONTROL MODULE INSPECTION.)
(See MAZDA ERA-GLONASS CONTROL MODULE BRACKET REMOVAL/INSTALLATION.)
(See MAZDA ERA-GLONASS CONTROL MODULE FINALIZATION PROCEDURE.)
(See MAZDA ERA-GLONASS CONTROL MODULE BATTERY REMOVAL/INSTALLATION.)
(See MAZDA ERA-GLONASS CONTROL MODULE CONFIGURATION.)
(See MAZDA ERA-GLONASS OPERATION RECORD.)
8
Front parking sensor buzzer (With front ultrasonic sensor)
(See FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION.)
(See FRONT PARKING SENSOR BUZZER INSPECTION.)
9
Fuel gauge sender unit (sub) (4WD)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].)
(See FUEL GAUGE SENDER UNIT INSPECTION [4WD])
10
Fuel gauge sender unit (2WD)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD].)
(See FUEL GAUGE SENDER UNIT INSPECTION [2WD].)
Fuel gauge sender unit (main) (4WD)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].)
(See FUEL GAUGE SENDER UNIT INSPECTION [4WD].)
11
MAZDA ERA-GLONASS switch (with MAZDA ERA-GLONASS)
(See MAZDA ERA-GLONASS SWITCH REMOVAL/INSTALLATION.)
(See MAZDA ERA-GLONASS SWITCH INSPECTION.)
12
Active driving display (With active driving display)
(See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.)
(See ACTIVE DRIVING DISPLAY INSPECTION.)

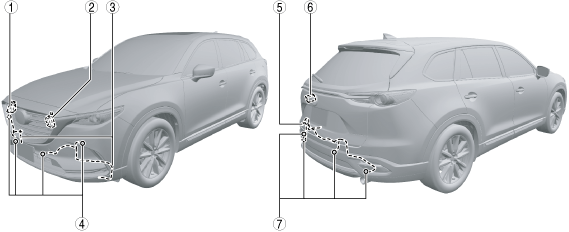

Exterior

ac9wzw00003996

1
Horn HI
(See HORN REMOVAL/INSTALLATION.)
(See HORN INSPECTION.)
2
Horn LO
(See HORN REMOVAL/INSTALLATION.)
(See HORN INSPECTION.)
3
Front ultrasonic sensor short-cord (With front ultrasonic sensor)
(See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
(See FRONT ULTRASONIC SENSOR SHORT-CORD INSPECTION.)
4
Front ultrasonic sensor (With front ultrasonic sensor)
(See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION.)
5
Rear ultrasonic sensor short-cord (With parking sensor system)
(See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
(See REAR ULTRASONIC SENSOR SHORT-CORD INSPECTION.)
6
Rear parking sensor buzzer (With parking sensor system)
(See REAR PARKING SENSOR BUZZER REMOVAL/INSTALLATION.)
(See REAR PARKING SENSOR BUZZER INSPECTION.)
7
Rear ultrasonic sensor (With parking sensor system)
(See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.)
