REAR WASHER HOSE REMOVAL/INSTALLATION

id091900801600

Rear Washer Hose A

Note

•  If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

2.  Front bumper (See FRONT BUMPER REMOVAL.) (See FRONT BUMPER INSTALLATION.)

3.  Front deflector (RH) (See FRONT DEFLECTOR REMOVAL/INSTALLATION.)

4.  Front over fender (RH) (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

5.  Front mudguard (RH) (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

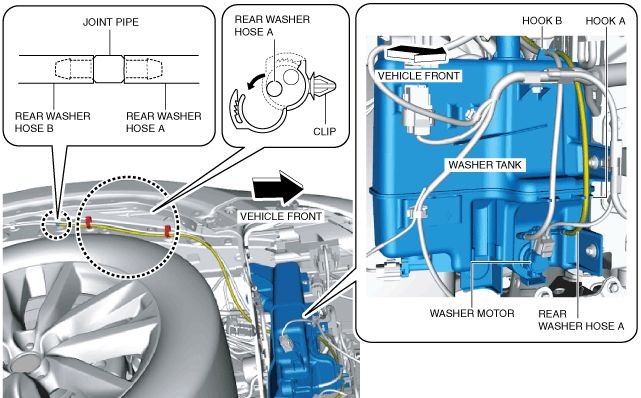

3.  Disconnect rear washer hose A from the washer motor.

ac9uuw00007288

4.  Pull out rear washer hose A from hook A.

5.  Pull out rear washer hose A from hook B.

6.  Pull out rear washer hose A from the clips.

7.  Disconnect rear washer hose B from the joint pipe.

8.  Remove rear washer hose A.

9.  Install in the reverse order of removal.

Rear Washer Hose B

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  Front deflector (RH) (See FRONT DEFLECTOR REMOVAL/INSTALLATION.)

2.  Front over fender (RH) (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

3.  Front mudguard (RH) (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

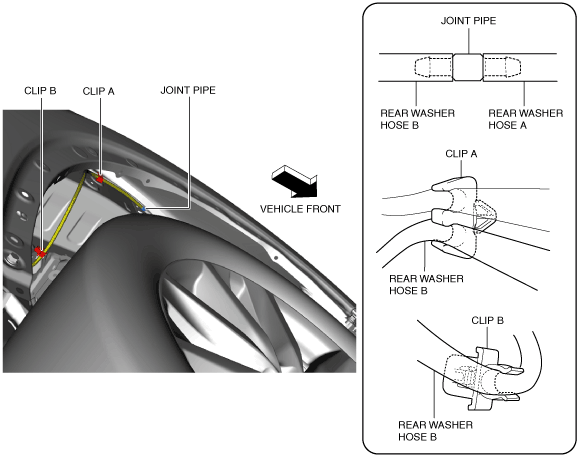

3.  Disconnect rear washer hose B from the joint pipe.

ac9uuw00007289

4.  Pull out rear washer hose B from the clip A.

5.  Pull out rear washer hose B from the clip B.

6.  Remove the following parts:

L.H.D.

1.  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

2.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

3.  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

4.  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

5.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

6.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

7.  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

8.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

9.  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

10.  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

11.  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

12.  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

13.  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

14.  Tuner and amp unit (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

15.  Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

R.H.D.

1.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

2.  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

3.  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

4.  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

5.  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

6.  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

7.  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

8.  Tuner and amp unit (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

9.  Driver-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

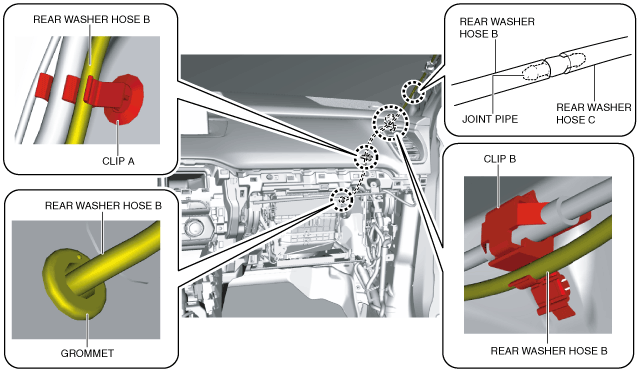

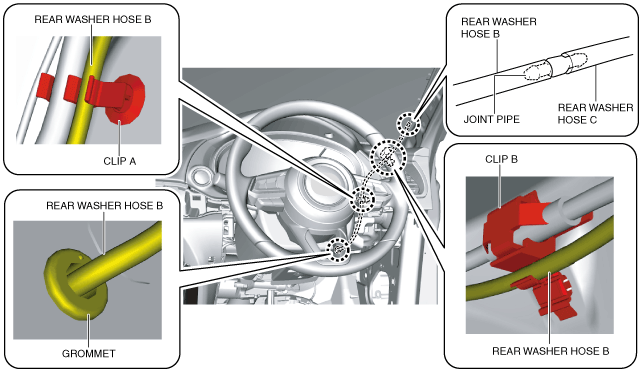

7.  Pull out the grommet from the body.

L.H.D.

ac9uuw00007290

R.H.D.

ac9wzw00003984

8.  Pull out rear washer hose B from clips A and B.

9.  Disconnect rear washer hose C from the joint pipe.

10.  Remove rear washer hose B.

11.  Install in the reverse order of removal.

Rear Washer Hose C

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

7.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

8.  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

9.  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

10.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

11.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

12.  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

13.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

14.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

15.  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

16.  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

17.  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

18.  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

19.  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

20.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

21.  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

22.  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

23.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

24.  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

25.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

26.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

27.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

28.  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

29.  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

30.  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

31.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

32.  Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

33.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

34.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3.  Remove the tape.

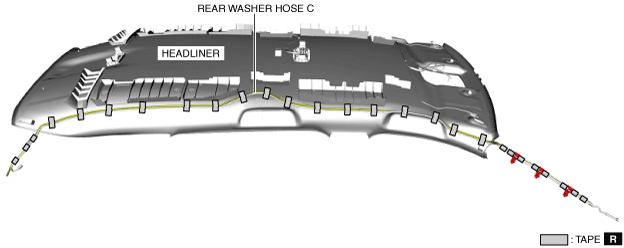

Without sunroof

ac9uuw00007291

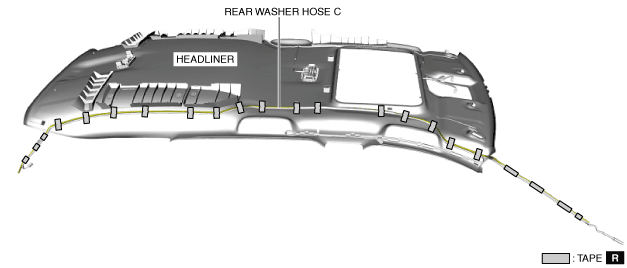

With sunroof

ac9uuw00007292

4.  Remove rear washer hose C. (See Rear washer hose C installation note.)

5.  Install in the reverse order of removal.

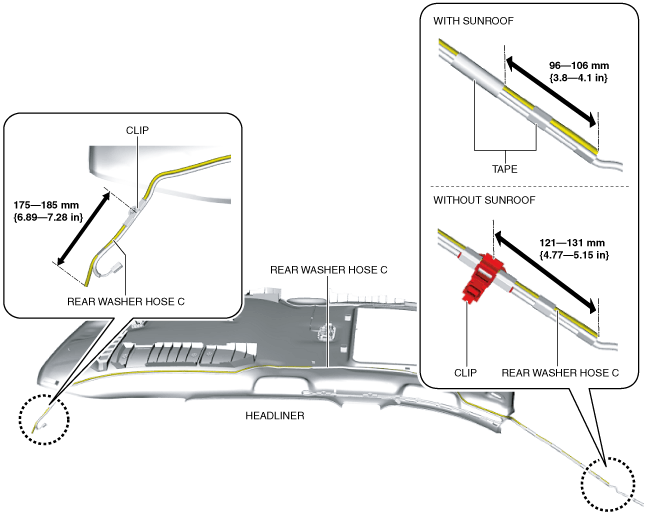

Rear washer hose C installation note

1.  When installing rear washer hose C to the headliner, install it aligning to the position shown in the figure.

ac9uuw00007293

Rear Washer Hose D

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

1.  Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

2.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

4.  Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

5.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

6.  Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

7.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

8.  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

9.  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

10.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

11.  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

12.  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

13.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

14.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

15.  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

16.  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

17.  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

18.  Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

19.  Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

20.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

21.  Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

22.  Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

23.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

24.  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

25.  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

26.  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

27.  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

28.  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

29.  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

30.  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

31.  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

32.  Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)

33.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

34.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

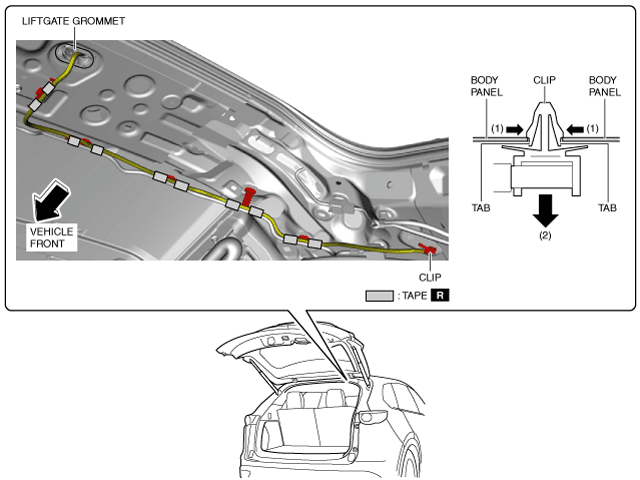

3.  While pressing the clip tabs in the direction of arrows (1) shown in the figure, pull the clip in the direction of arrow (2) to detach the clip tabs from the body panel.

ac9uuw00007294

4.  Remove the tape.

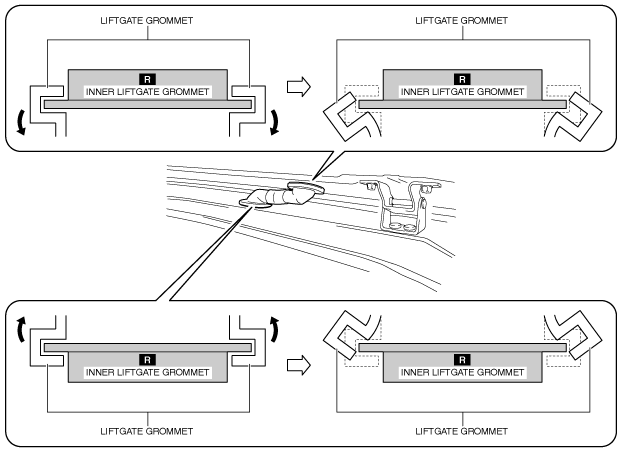

5.  Partially peel the liftgate grommet in the direction of arrows shown in the figure, and remove the liftgate grommet from the inner liftgate grommet.

ac9uuw00007295

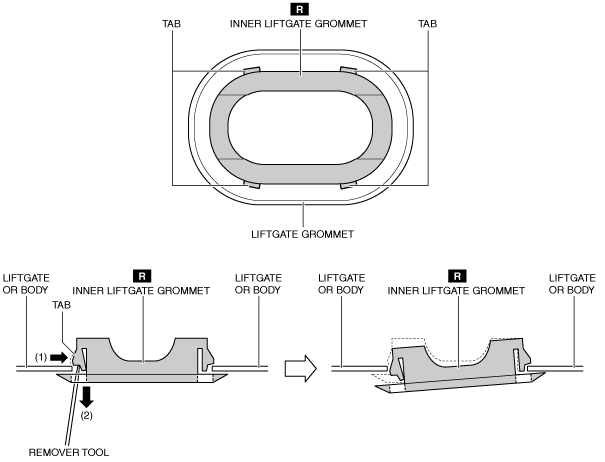

6.  While pressing the tab of the inner liftgate grommet in the direction of arrow (1) shown in the figure, pull the inner liftgate grommet in the direction of arrow (2) and detach the tab of the inner liftgate grommet from the liftgate or body.

ac9uuw00007296

7.  Detach all the tabs of the inner liftgate grommet from the liftgate or body and remove the inner liftgate grommet.

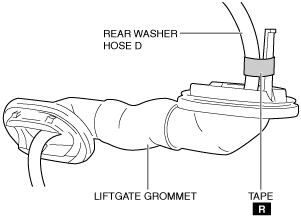

8.  Remove the tape. (See Rear washer hose D installation note.)

ac9uuw00007297

9.  Disconnect rear washer hose D from the joint pipe.

ac9uuw00007298

10.  Remove rear washer hose D.

11.  Install in the reverse order of removal.

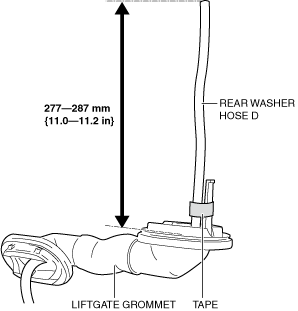

Rear washer hose D installation note

1.  When installing rear washer hose D to the liftgate grommet, install it aligning to the position shown in the figure.

ac9wzw00005276
