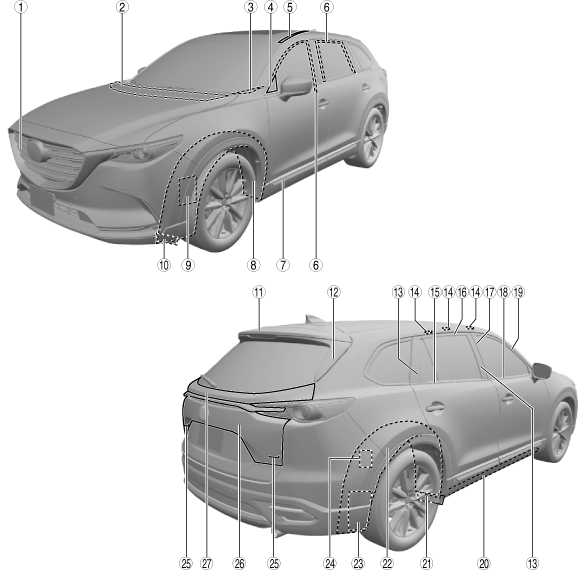

EXTERIOR TRIM LOCATION INDEX
id091600800100
ac9wzw00003900
|
|
1
|
Radiator grille
|
|
2
|
Cowl grille
|
|
3
|
Front fender molding
|
|
4
|
Sail garnish
|
|
5
|
Roof molding
(See ROOF MOLDING REMOVAL.)
(See ROOF MOLDING INSTALLATION.)
|
|
6
|
Door sash film
(See DOOR SASH FILM REMOVAL.)
(See DOOR SASH FILM INSTALLATION.)
|
|
7
|
Side garnish
|
|
8
|
Front mudguard
|
|
9
|
Front splash shield
|
|
10
|
Front deflector
|
|
11
|
Rear spoiler
(See REAR SPOILER REMOVAL.)
(See REAR SPOILER INSTALLATION.)
|
|
12
|
Side spoiler
(See SIDE SPOILER REMOVAL.)
(See SIDE SPOILER INSTALLATION.)
|
|
13
|
Rear door garnish
(See REAR DOOR GARNISH REMOVAL.)
|
|
14
|
Roof carrier bracket
|
|
15
|
Rear beltline molding
|
|
16
|
Rear sash molding
(See REAR SASH MOLDING REMOVAL.)
|
|
17
|
Front door garnish
(See FRONT DOOR GARNISH REMOVAL.)
|
|
18
|
Front beltline molding
|
|
19
|
Front sash molding
(See FRONT SASH MOLDING REMOVAL.)
|
|
20
|
Side step molding
(See SIDE STEP MOLDING REMOVAL.)
|
|
21
|
Rear deflector
|
|
22
|
Rear mudguard
|
|
23
|
Rear splash shield
|
|
24
|
Extractor chamber
|
|
25
|
Ornament
(See ORNAMENT INSTALLATION.)
|
|
26
|
Rear finisher
(See REAR FINISHER REMOVAL.)
(See REAR FINISHER INSTALLATION.)
|
|
27
|
Liftgate garnish
|

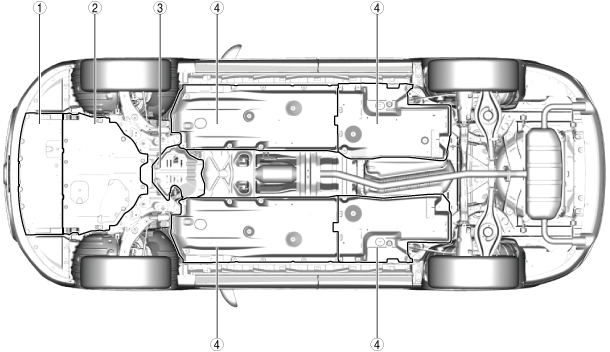

2WD
ac9wzw00005350
|
|
1
|
Front under cover No.1
|
|
2
|
Front under cover No.2
|
|
3
|
Plate
(See PLATE REMOVAL/INSTALLATION.)
|
|
4
|
Floor under cover
|

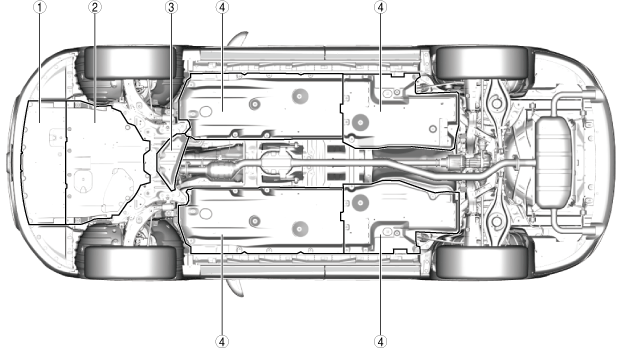

4WD
ac9wzw00005351
|
|
1
|
Front under cover No.1
|
|
2
|
Front under cover No.2
|
|
3
|
Plate
(See PLATE REMOVAL/INSTALLATION.)
|
|
4
|
Floor under cover
|
