INTERIOR TRIM LOCATION INDEX

id091700600100

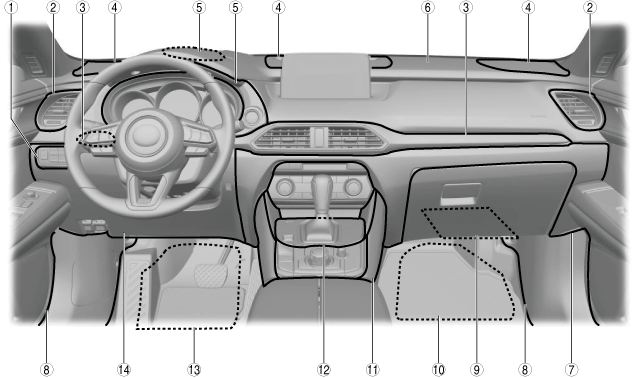

ac9wzw00003561

1
Cluster switch
(See CLUSTER SWITCH REMOVAL/INSTALLATION.)
2
Ventilator grille
(See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
3
Decoration panel
(See DECORATION PANEL REMOVAL/INSTALLATION.)
4
Speaker grille
(See SPEAKER GRILLE REMOVAL/INSTALLATION.)
5
Meter hood
(See METER HOOD REMOVAL/INSTALLATION.)
6
Dashboard
(See DASHBOARD REMOVAL.)
(See DASHBOARD INSTALLATION.)
(See DASHBOARD DISASSEMBLY/ASSEMBLY.)
7
Passenger-side lower panel
(See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
8
Front side trim
(See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
9
Dashboard under cover
(See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
10
Foot support
(See FOOT SUPPORT REMOVAL/INSTALLATION.)
11
Front console
(See FRONT CONSOLE REMOVAL/INSTALLATION.)
(See FRONT CONSOLE DISASSEMBLY/ASSEMBLY.)
12
Shift panel
(See SHIFT PANEL REMOVAL/INSTALLATION.)
13
Heel cushion
(See HEEL CUSHION REMOVAL/INSTALLATION.)
14
Driver-side lower panel
(See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)

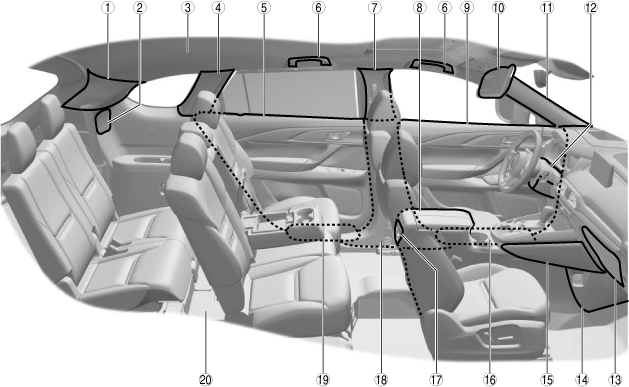

ac9wzw00003562

1
D-pillar trim
(See D-PILLAR TRIM REMOVAL/INSTALLATION.)
2
Speaker grille
(See SPEAKER GRILLE REMOVAL/INSTALLATION.)
3
Headliner
(See HEADLINER REMOVAL/INSTALLATION.)
4
C-pillar trim
(See C-PILLAR TRIM REMOVAL/INSTALLATION.)
5
Rear door trim
(See REAR DOOR TRIM REMOVAL/INSTALLATION.)
(See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY.)
6
Assist handle
(See ASSIST HANDLE REMOVAL/INSTALLATION.)
7
B-pillar upper trim
(See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
8
Rear console
(See REAR CONSOLE REMOVAL/INSTALLATION.)
(See REAR CONSOLE DISASSEMBLY/ASSEMBLY.)
9
Front door trim
(See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)
10
Sunvisor
(See SUNVISOR REMOVAL/INSTALLATION.)
11
A-pillar trim
(See A-PILLAR TRIM REMOVAL/INSTALLATION.)
12
Column cover
(See COLUMN COVER REMOVAL/INSTALLATION.)
13
Glove compartment
(See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
14
Side wall
(See SIDE WALL REMOVAL/INSTALLATION.)
15
Console side panel
(See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
16
Front scuff plate
(See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
17
Ventilator grille
(See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
18
B-pillar lower trim
(See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
19
Rear scuff plate
(See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
20
Floor covering
(See FLOOR COVERING REMOVAL/INSTALLATION.)

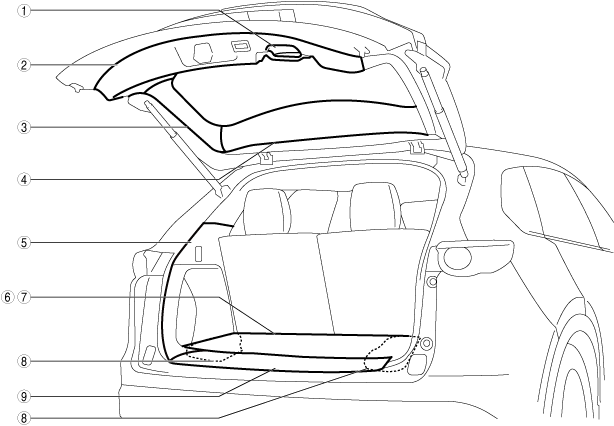

ac9uuw00005709

1
Liftgate recess
(See LIFTGATE RECESS REMOVAL/INSTALLATION.)
2
Liftgate lower trim
(See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
3
Liftgate side trim
(See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
4
Liftgate upper trim
(See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
5
Trunk side trim
(See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
6
Trunk covering
(See TRUNK COVERING REMOVAL/INSTALLATION.)
7
Trunk board
(See TRUNK BOARD REMOVAL/INSTALLATION.)
8
Trunk side pocket
(See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
9
Trunk end trim
(See TRUNK END TRIM REMOVAL/INSTALLATION.)
